Trailer Hitches & Wiring
Trailer hitches and towing wiring for cars, SUVs, vans and pickups: receiver hitches from Class 1 to Class 5, gooseneck heads, ball mounts, pintle hooks, 4-flat and 7-way wiring harnesses and brake controllers, listed by year, make and model. The brands are CURT, Draw-Tite, Tekonsha, TorkLift, Hopkins and B&W.
Absolute Autoguard is a truck and van accessory dealer in Winnipeg, Manitoba. Most hitches and harnesses ship across Canada in 7 to 10 business days, and each product page publishes the vehicle fitment the manufacturer provides. Shop by type: Custom towing wiring, or by brand above.
Receiver hitches, gooseneck hitches and trailer wiring by vehicle
This is the hub for everything towing. The grid is dominated by Draw-Tite and CURT, the two brands with the most vehicle-specific listings: CURT 4-flat custom wiring for cars and crossovers like the 2015-2020 Toyota Sienna and 2012-2021 Subaru Impreza, and Draw-Tite receiver hitches, Hide-A-Goose gooseneck heads rated 20,000 to 30,000 lb, ball mounts and pintle hooks. B&W adds Class 3 and Class 5 receivers, TorkLift adds front receivers and stainless steel EcoHitch receivers for EVs, and Tekonsha and Hopkins supply the brake controllers and vehicle harnesses.
Two numbers decide most hitch purchases. The class, 1 through 5, sets the weight range the receiver is built for. The receiver opening, 1-1/4 inch on Class 1 and 2 and 2 inch on Class 3 and above, sets which ball mounts and accessories fit.
Shop trailer hitches and wiring by type
Receiver hitches, Class 1 to Class 5
Bolt-on receivers matched to a vehicle's frame. CURT covers the broadest set of cars and crossovers, Draw-Tite the pickups and Sprinter vans, and B&W the Highlander, RAV4, Crosstrek and CR-V at Class 3 and the Super Duty, Silverado HD, Sierra HD and Ram 2500 and 3500 at Class 5.
Gooseneck and fifth wheel hitches

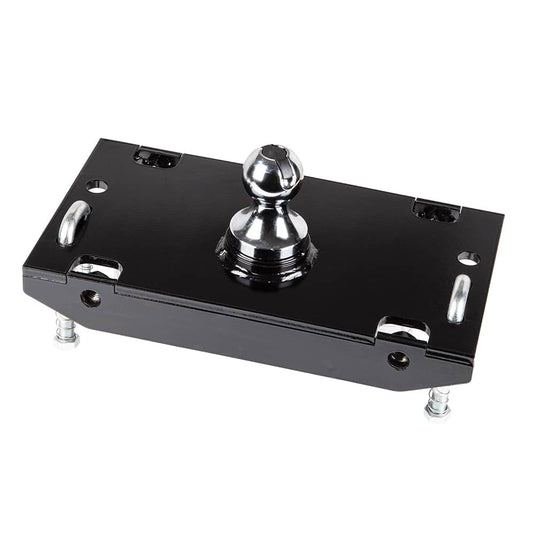

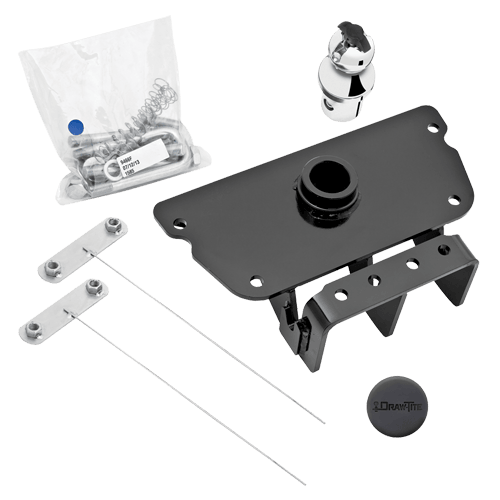

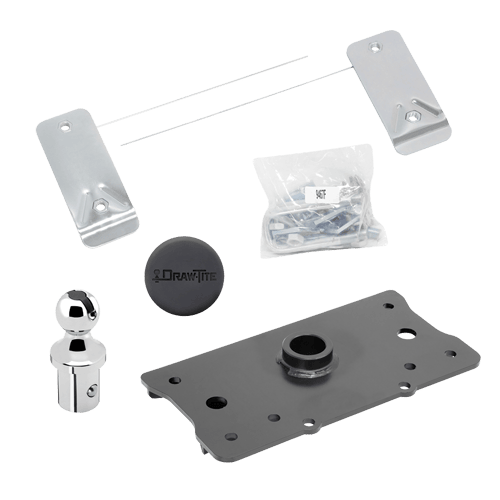

Underbed gooseneck heads with a 2-5/16 inch ball: Draw-Tite Hide-A-Goose at 20,000, 25,000 and 30,000 lb, and the B&W Turnoverball. Both need the truck-specific underbed kit and a 7-way socket in the bed.
Ball mounts, hitch balls and pintle hooks

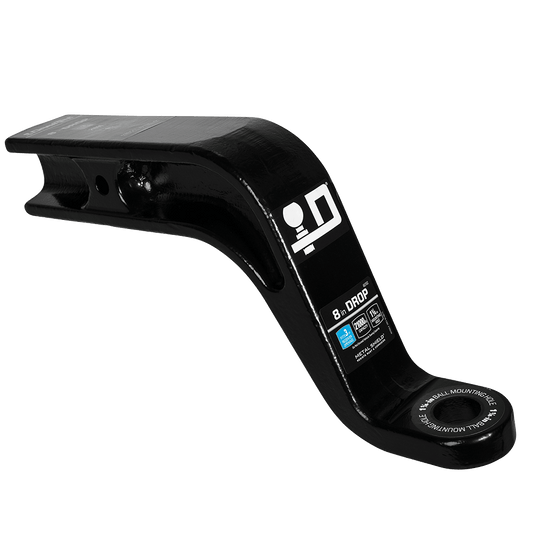

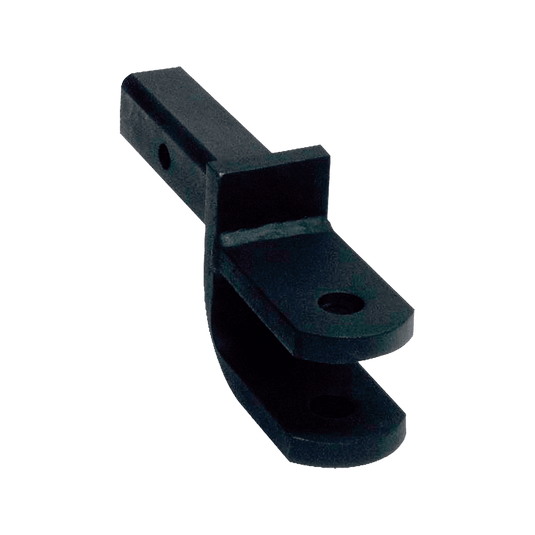

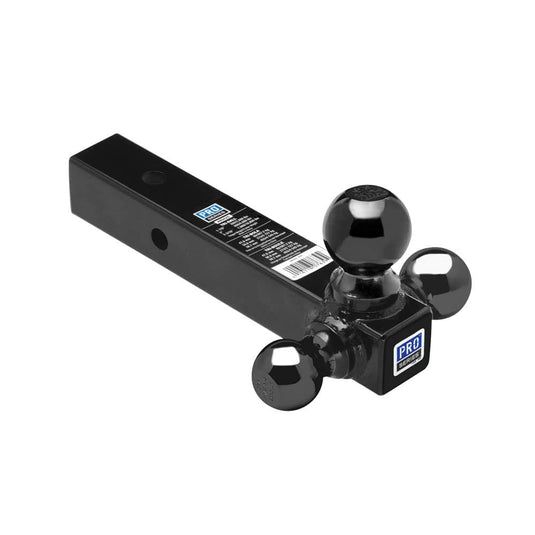

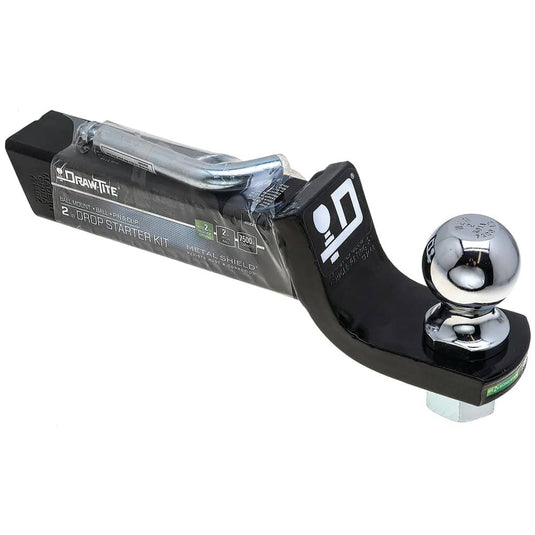

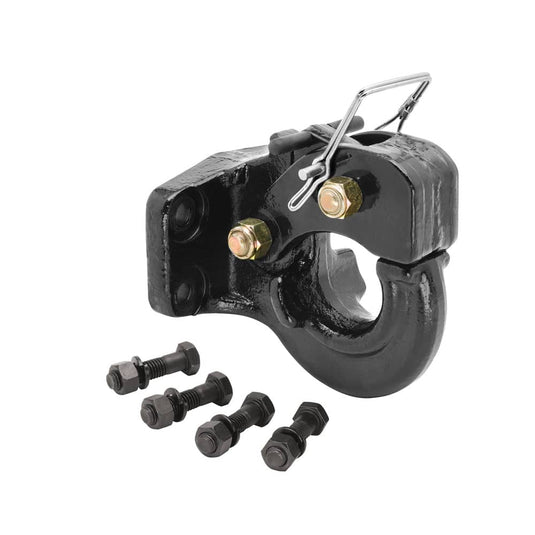

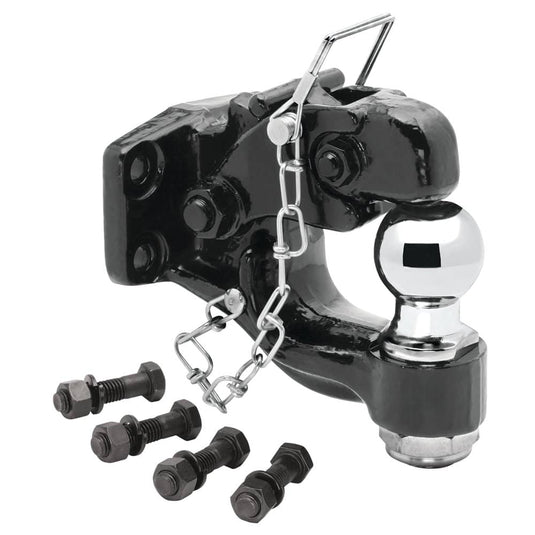

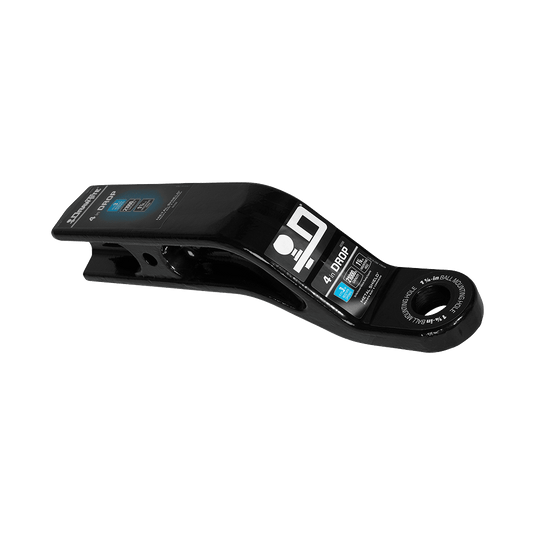

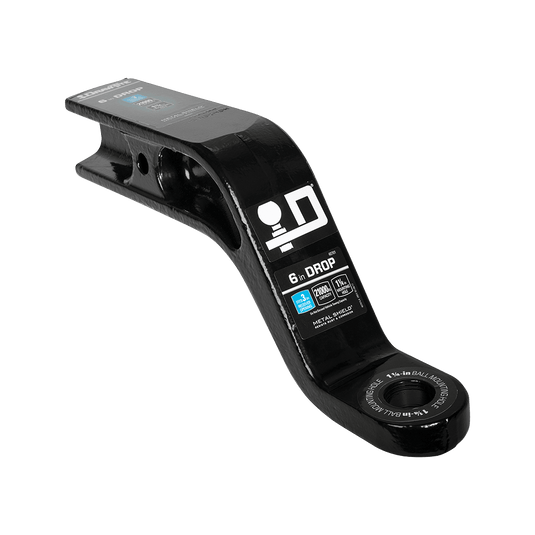

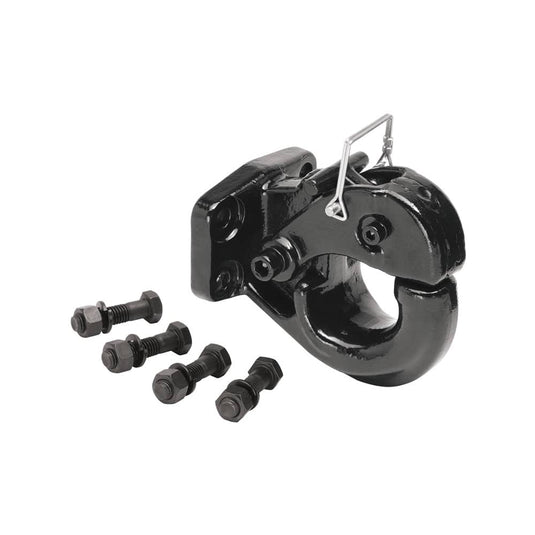

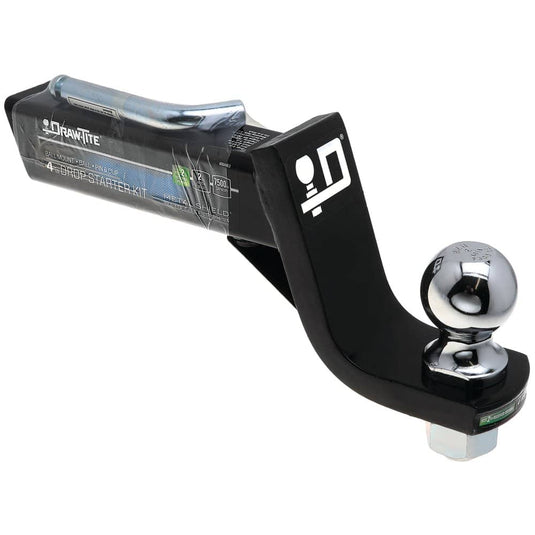

Fixed-drop, clevis and tri-ball mounts for 1-1/4 and 2 inch receivers, hitch balls in 1-7/8, 2 and 2-5/16 inch, and Draw-Tite pintle hooks at 10,000, 16,000 and 20,000 lb. Pintle mounts and combination plates are also in Buyers Products Towing.
Custom towing wiring
Vehicle-specific harnesses that plug into the factory taillight connectors: CURT 4-flat custom wiring, Tekonsha T-One 4-way flat harnesses with the ModuLite HD module, Tekonsha 7-way and fifth wheel bed harnesses, and Hopkins Multi-tow 7:4 harnesses.
Brake controllers
Tekonsha Prodigy P2, Prodigy P3, Voyager and Primus IQ, plus the Prodigy iD and Voyager iD, all 30 amp and covering one to four axles. Any trailer with electric brakes needs one.
Front receivers and EcoHitch
TorkLift Front North-hitch 2 inch receivers for the F-150, Super Duty, Ram 2500 and 3500 and Silverado and Sierra HD, and stainless steel EcoHitch receivers for the RAV4, Ioniq 5, Equinox EV and Tesla.
Shop by vehicle
The makes with the most hitch and wiring listings:
- Ford: F-150, F-250 and F-350 Super Duty, Ranger, Transit
- Chevrolet: Silverado 1500, 2500 HD and 3500 HD, Traverse, Tahoe, Trax, Equinox EV
- GMC: Sierra 1500, 2500 HD and 3500 HD, Acadia
- Ram: 1500, 2500 and 3500
- Toyota: Highlander, Grand Highlander, RAV4, Sienna, Tundra
- Honda: CR-V and CR-V Hybrid
- Hyundai: Accent, Elantra, Palisade, Ioniq 5
- Kia: Sorento, Sportage, Soul, EV6
- Subaru: Impreza, WRX, Legacy, Crosstrek
- Nissan: Frontier, Pathfinder, Xterra
- Jeep and Volkswagen
Why buy trailer hitches here
- Six towing brands in one place. CURT and Draw-Tite for hitches, B&W for heavy-duty receivers, TorkLift for front and EV receivers, Tekonsha and Hopkins for controllers and wiring.
- Fitment on the page. Each hitch and harness lists its year range and model, from a 1988 Toyota Pickup harness to a 2026 Ram 3500 hitch.
- Hitch, wiring and controller matched. Draw-Tite and Tekonsha share a parent company, and CURT lists the harness for the same vehicles as its hitches.
- Canadian shipping from Winnipeg. Most hitches and harnesses ship in 7 to 10 business days, priced in Canadian dollars.
Choosing the right trailer hitch and wiring
Work from the trailer back to the vehicle. Note the trailer's loaded weight, tongue weight and coupler size, and whether it has electric brakes. Check the tow rating in your owner manual; the hitch class must cover the trailer, but the vehicle's rating is the ceiling. Choose the receiver class and confirm the opening, then the ball mount drop that keeps the trailer level. A 4-flat is enough for lights only; brakes need a 7-way and a brake controller. EVs and hybrids usually need a powered module in the harness, which the product page will state. If you are not sure what fits, contact us with your year, make, model and configuration.
Common questions
What class of trailer hitch do I need?
Class 1 and 2 for cars and small crossovers, Class 3 for SUVs, minivans and half-ton trucks, Class 4 and 5 for full-size and heavy-duty pickups with heavy trailers. Always confirm your vehicle's own tow rating, which is often lower than the hitch.
What is the difference between a 1-1/4 inch and a 2 inch receiver?

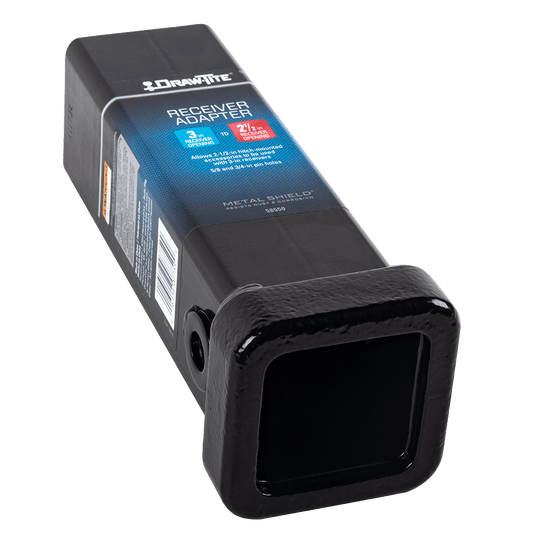

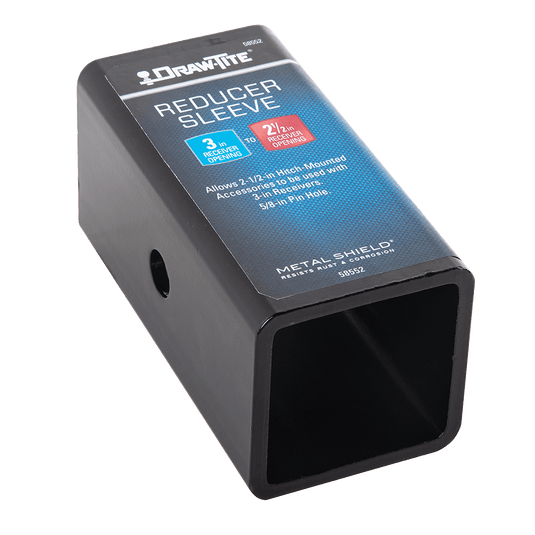

The opening size, which determines the accessories that fit. Class 1 and 2 hitches use 1-1/4 inch, Class 3 and up use 2 inch. Adapter sleeves let a 1-1/4 inch bike rack go into a 2 inch receiver, but never the other way.
Gooseneck or fifth wheel?
A gooseneck uses a ball in the truck bed and suits horse, flatbed and equipment trailers; a fifth wheel uses a kingpin and jaw plate and is the standard for RV fifth wheels. Both need the underbed mounting kit for that truck.
What is the difference between 4-flat and 7-way trailer wiring?
A 4-flat carries running lights, brake lights and turn signals. A 7-way adds electric brakes, reverse lights and 12 volt power, and is what campers and trailers with brakes use.
Do I need a brake controller?
Yes, if the trailer has electric brakes; without a controller they do nothing. Surge-brake trailers, common on boats, do not need one. Proportional and time-delayed controllers are in the Tekonsha collection.
